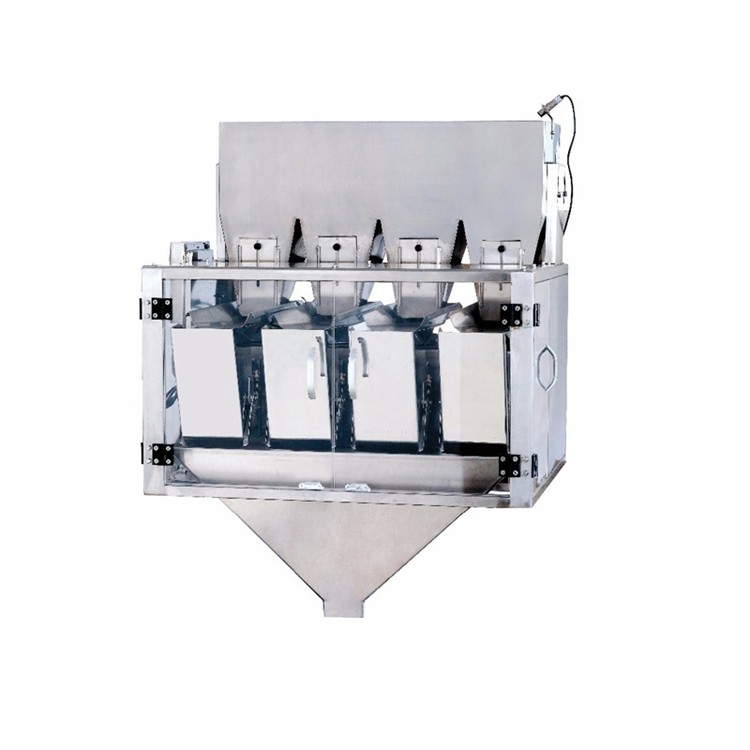

Semi-Automatic 4 Head Linear Weigher Packing Machine For Bean Tea
4head linear weighing grain flourseeds packaging machine for small
business
1 . Application of ZH-A4 4 Head Linear weigher
It is suitable for weighing small grain, powder such as cereal
sugar, glutamate, salt, rice, sesame, milk powder, coffee, candy
seasoning powder etc.
2 . Parameters
| Model | ZH-A4 |
| Weighing Range | 10-2000g |
| Max Weigh Speed | 60 Bags/Min |
| Accuracy | 0.2-2g |
| Hopper Volume | 3000ml |
| Max Products | 4 |
| Interface | 5.4"HMI |
| Power | 220V / 50/60HZ / 8A/ 800W |
| Dimension(mm) | 1010(L)*960(W)*1207(H) |
3 . Main function
1 . High precise digital weighing sensor and AD module have been
developed.
2 . Touch screen with human-based interface.
3 . The hoppers are easy to remove without tool .
4 . Chinese/English/Spanish multi language operation system can be
selected basing on customer’s requests.
5 . The 4head linear weigher can work with different type packing
machine,It's very easy to install and opeartion.
6. Linear weigher Scale,There are two moldels with either 2 heads
or 4 heads .
4. Working process:
1. products are firstly delivered by conveyor into feeder
hopper,then discharged to 4 linear vibration pan.
2. Products are distributed uniformly to each linear vibration pan
from the top cone,then fed into and stored in the feed hopper.
3. weigh hoppers finished the weighing and combination and
discharged products to the next packaging machine.
Our Service:
Pre-Sales Service After-Sales Service
* Inquiry and consulting support.
* Training how to install the machine, training how to use the
machine.
* Sample testing support.
* Engineers available to service machinery overseas.
* View our factory.
Service Terms:
Our mission is provide high quality products and comprehensive
service to our customers.We are dedicated to providing
customers with perfect and efficient service.
1. Training service:
We will train your engineer to install our machines and how to fix
some small problems.You can send your
engineer to our factory or we can dispatch our engineer to your
company.
2. Trouble shooting service:
Sometimes if you can not fix the problem by yourselves,we will send
our engineer to help you if you need.By the
way,you need to afford the round trip and accommodation fee.
3. Spare part replacement:
Our warranty time is 18 months.In this period,if your spare part is
broken,we will send you the part for free.
4. The documents that will be supplied:
1) Invoice
2) Packing List
3) Bill of Lading
4) Other files that buyer wanted
